Prodak Diskripsen
Smuk halojen- fri kros-}link polietilin insulet pawa kebol bilong pawa kebol.i gutpela long putim insait na ausait fiks instolesen long low-voltej pawa sistem. Olsem, wok bilong tilim pawa bilong lektrik long ol pawa grid bilong ol taun, ol ples bilong pawa o swit bilong swit, na ol indastriel plent.
Kondakta
Klas 2 nomol annealed stranded sekol o sekol kompak oksijen fri kopa kondakta folem IEC 60228. O Level 5 blong IEC 60228 (RV{4}}K taip).
Insulesen
Kros linked polietilen (XLPE) i bin rausim leit bihainim IEC 60502-1.
Hait ausait
Polyvinyl kloraid (PVC) i bin rausim leit – ST2 taip bihainim IEC 60502-1.

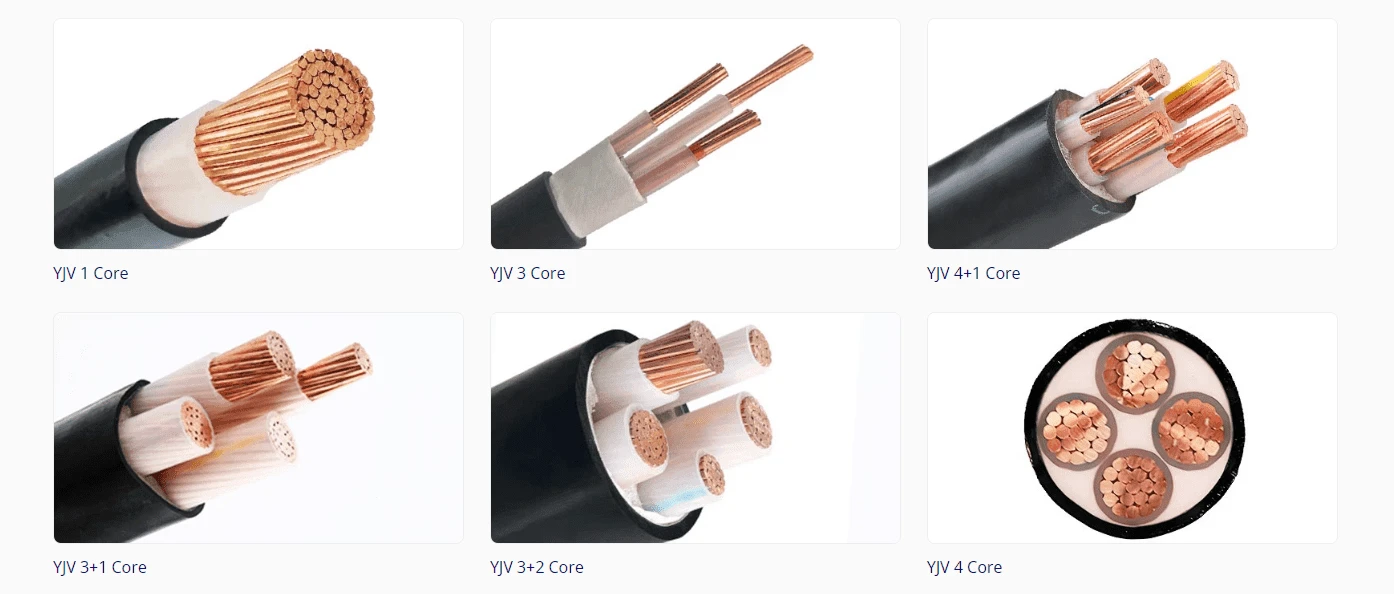

Ol Model blong Kros- i stap long Polyeten Pawa Kebol
Ol Prodak Paramita
Ol standet bilong Mica Teip Low smok nogat halogen Xlpe Insulated pawa Kebol long 0.6/1KV LV
0.6KV/ 1KV PVC i insulet (paia-}resis) pawa kebol i bungim nesenel standet bilong GB/T 12706-2008 we i wankain olsem IEC 60502-2004.
Dispela samting i no inap long paia i bihainim GB/T 18380-2008 we i min olsem em i inapim tu IEC 60332-2004.
|
NO.long ol kors×seksen |
Nomal insulesen tiknes(mm) |
Nomal tiknes bilong ovapela gras |
Klostu olgeta diamita bilong kebol(mm) |
Klostu hevi bilong kebol(kg/km) |
|||||
|
Cu |
AL |
||||||||
|
I no gat ol klos bilong paia |
Armored |
I no gat ol klos bilong paia |
Armored |
YJV |
YJV22. |
YJLV |
YJLV22 |
||
|
4×4 |
0.7 |
1.8 |
1.8 |
12.5 |
18.1 |
282 |
430 |
/ |
/ |
|
4×6 |
0.7 |
1.8 |
1.8 |
14.7 |
17 |
383 |
545 |
/ |
/ |
|
4×10 |
0.7 |
1.8 |
1.8 |
16.9 |
19.1 |
565 |
752 |
390 |
517 |
|
4×16 |
0.7 |
1.8 |
1.8 |
19.3 |
21.6 |
783 |
1020 |
416 |
663 |
|
4×25 |
0.9 |
1.8 |
1.8 |
23.5 |
25.7 |
1241 |
1502 |
593 |
902 |
|
4×35 |
0.9 |
1.8 |
1.8 |
26.7 |
28.7 |
1631 |
1957 |
776 |
1096 |
|
4×50 |
1.0 |
1.8 |
1.9 |
28.0 |
32.6 |
2080 |
2812 |
961 |
1770 |
|
4×70 |
1.1 |
2.0 |
2.1 |
33.2 |
37.5 |
2952 |
3796 |
1302 |
2222 |
|
4×95 |
1.1 |
2.1 |
2.3 |
38.0 |
42.6 |
3970 |
4962 |
1693 |
2757 |
|
4×120 |
1.2 |
2.3 |
2.4 |
40.9 |
46.4 |
4894 |
5913 |
2077 |
3363 |
|
4×150 |
1.4 |
2.4 |
2.6 |
46.0 |
51.3 |
5980 |
7170 |
2852 |
3878 |
|
4×185 |
1.6 |
2.6 |
2.7 |
52.5 |
57.8 |
7442 |
8802 |
3173 |
4618 |
|
4×240 |
1.7 |
2.8 |
3.0 |
59.4 |
64.6 |
9764 |
11289 |
4032 |
5782 |
|
4×300 |
1.8 |
3.0 |
3.1 |
66.2 |
71.6 |
12122 |
13856 |
4924 |
6735 |
|
4×400 |
2.0 |
3.3 |
3.4 |
73.8 |
80.3 |
15624 |
18407 |
6272 |
9313 |
|
4×500 |
2.2 |
3.5 |
3.7 |
89.3 |
96 |
19877 |
23264 |
7667 |
11062 |
|
4×630 |
2.4 |
3.8 |
4.0 |
99.6 |
106.3 |
25124 |
28895 |
9514 |
13293 |
Ol Prodak lukaut
Low smok nogat halogen Xlpe Insulated pawa Kebol Instalesen Prekosen:
1. Minimum bending radius taim yu putim kebol i no liklik long 10 taim ausait diamita bilong kebol.
2. yjv / yjlv kebol i stap insait long haus, long ol senel na paip, na ol i ken planim tu long graun i no pas gut, we i no inap karim ol strong bilong ausait.
3. Ol yjv22 / yjlv22 kebol i stap aninit long graun na ol i ken sanap strong long ol ekstenel mekanik fos, tasol ol i no inap sanap strong long ol bikpela tensil fos.
4. Ol spesel tul oli mas yusum blong putum kebol, olsem pei-of rak, ol gaed rola, mo ol narawan, blong blokem ol mekanik damej long taem blong proses blong putum samting mo stap longwe long ol ples we i gat hat.
5. Taem yu putum kebol tru long paep, diamita blong paep insaed i no mas daon long 1.5 taem aotsaed diamita blong klik.
Em i bilong bid long skwesim kebol taim yu wokabaut long paip. Total eria blong kebol i no mas bitim 40% blong total eria blong paep.
Prodak Aplikesen
Aplikesen Ol samting bilong daunim smok i no gat halogen Xlpe Insulation pawa Kebol long 0.6/1KV LV
1. Reit voltej U0/U: 0.6/1kV
2. Tempereja blong wok blong wok: 70 digri
3. Sot seket: Tempereja blong kondukta i no strong tumas o i sem mak long 160 digri , taem we i stap longtaem Les bitim o i sem mak long 5 seken .
4. Tempereja blong ambient i mas antap long 0 digri taem yu stap ledaon, mo preheting i nid sapos tempereja i stap anda long 0 digri . Proses blong leit i no afektem drop hae.
5. Minimum bending radius long taim bilong putim: 20 taim bilong ausait kebol diamita bilong wanpela kor taip, na 15 taim bilong multi-ko taip.
6. Neutraliti bilong faiv-' ko pawa kebol i narapela kain long waia bilong graun, na sistem i stap gut tru.
Ol Prodak Pekejing Na Trenspot
Jinshenghong Cable i save mekim gut ol samting bilong pasim na trenspotim kebol. Ol i save koilim ol kebol na putim long ol samting bilong lukautim ol long ol samting bilong lukautim ol bilong pasim bagarap long taim bilong transit.
Ol i kisim spesel kea bilong holim strong fleksibiliti na integriti bilong kebol, na mekim gut wok bilong en taim em i kamap.
